Die-cutting & Foil Stamping Equipment
Shanghai Yoco Printing Machinery Co., Ltd is located in Fengxian, Shanghai China, spanning 30,000sqm, and specialized in the manufacturing of post-press machinery including: automatic die cutting machine and automatic foil stamping machine.
About 60% of the products are for export. YOCO are the only die cutting machine manufacturer in China that achieved the GS Safety Certificate from Germany.
Thanks to the sound die cutting and foil stamping experience and know-how from Japan NIKKO Engineering Co.Ltd., YOCO assembles all NIKKO machines under license in their own factory. YOCO has the sales right to export NIKKO machines worldwide. Their full range product starts from size 600x450mm to 1820x1220mm. Yoco die cutting machines and foil stamping machines are suitable to produce paper, cardboard and corrugated board boxes.
Automatic Die-Cutting Machine

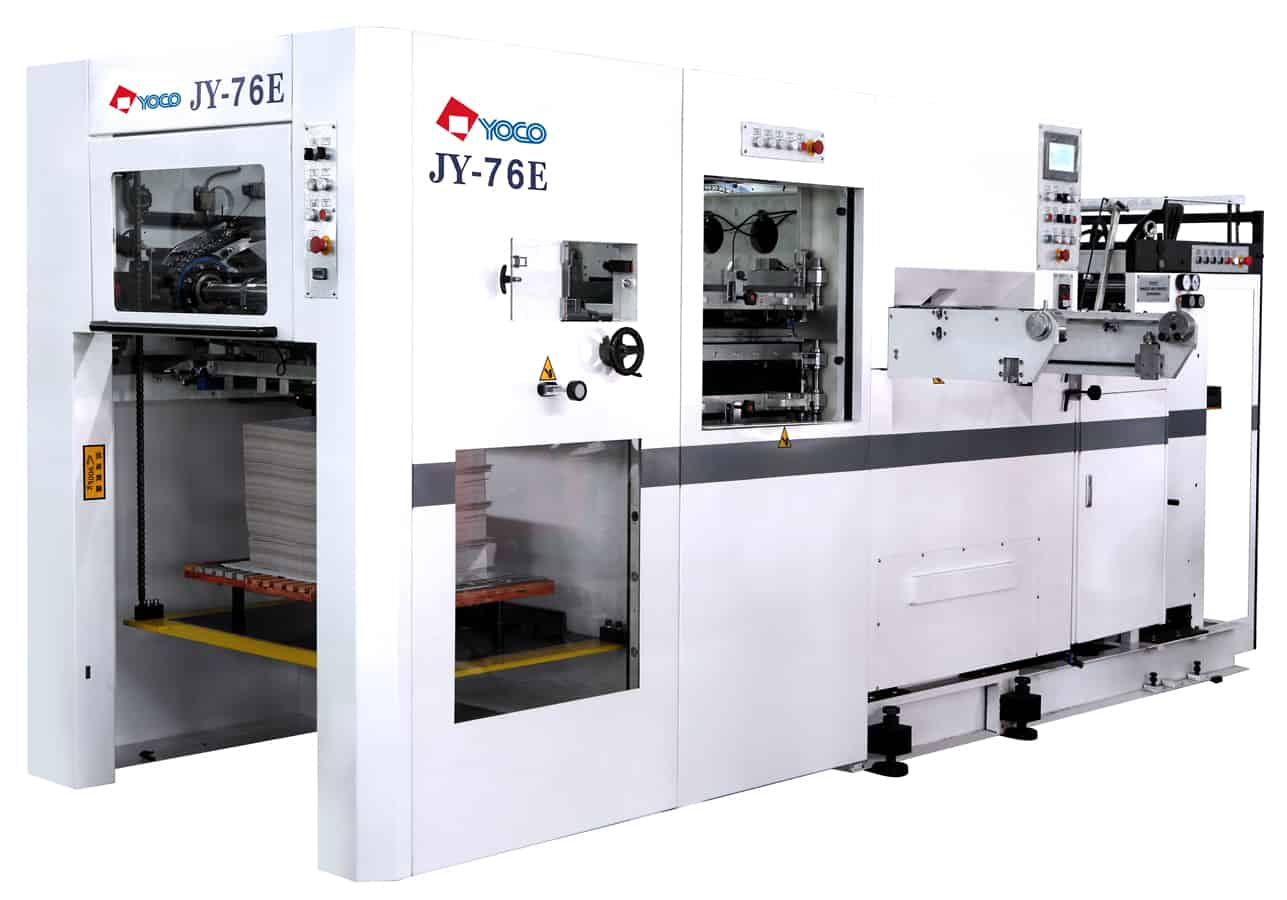

YOCO NIKKO JY-76E - B2 size
Technical specification:
- Maximum sheet size, mm: 760 × 600
- Minimum sheet size, mm: 310 × 360
- Maximum diecutting size, mm: 750 × 580
- Minimum gripper margin, mm: 10
- Inside chase, mm: 910 × 560 mm
- Sheet thickness, mm: Cardboard 0.2-2mm, Corrugated board E, B
- Maximum speed, sh/h: 7000

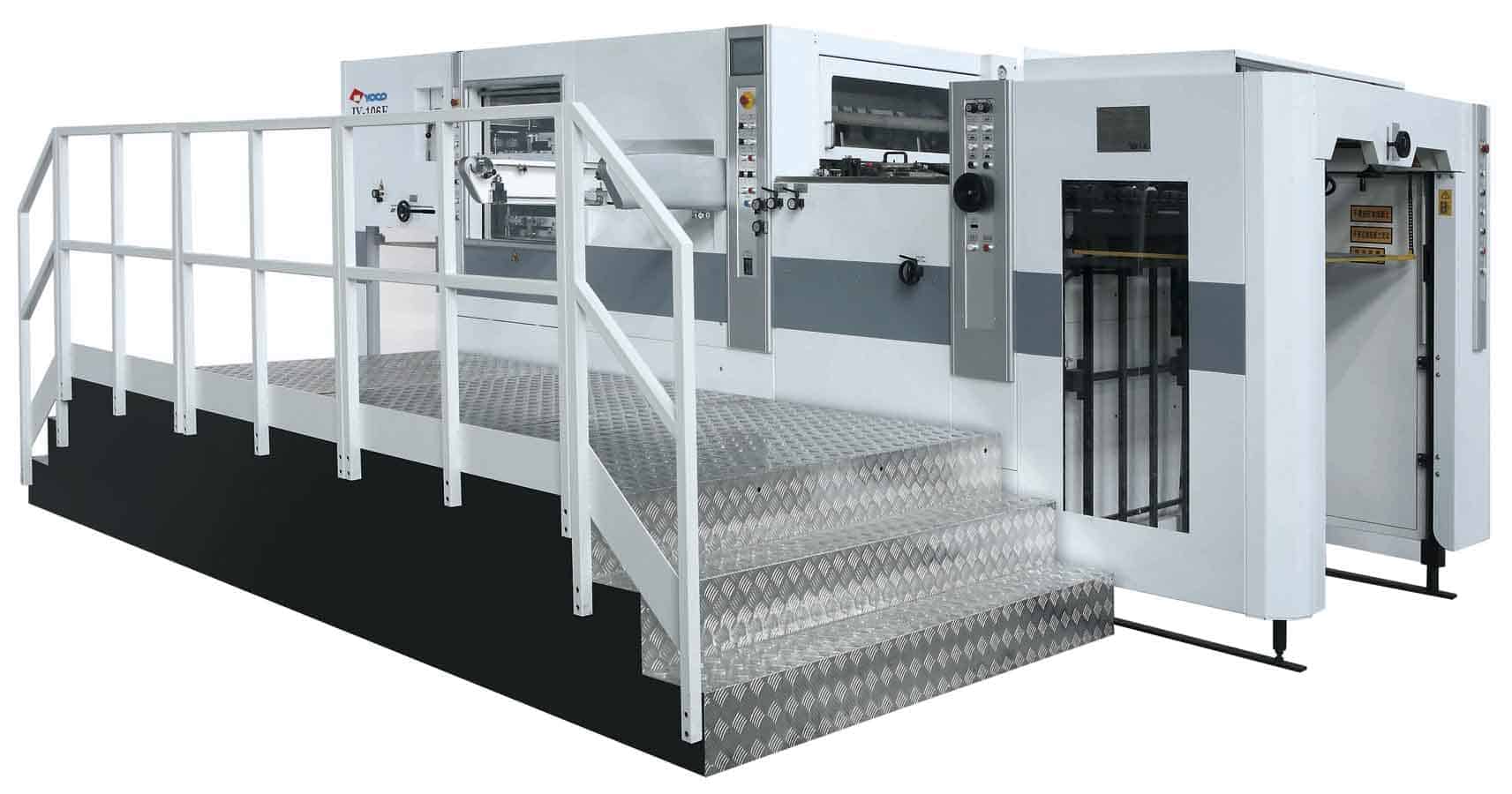

YOCO NIKKO JY-106E - B1 size
Technical specification:
- Maximum sheet size, mm: 1060 × 750
- Minimum sheet size, mm: 450 × 380
- Maximum diecutting size, mm: 1040 × 720
- Minimum gripper margin, mm: 8
- Inside chase, mm: 1120 x 760 mm
- Sheet thickness, mm: 80 gsm up to 5mm B corrugated board
- Maximum speed, sh/h: 7500
Automatic Die-Cutting & Hot-Foil Stamping Machine

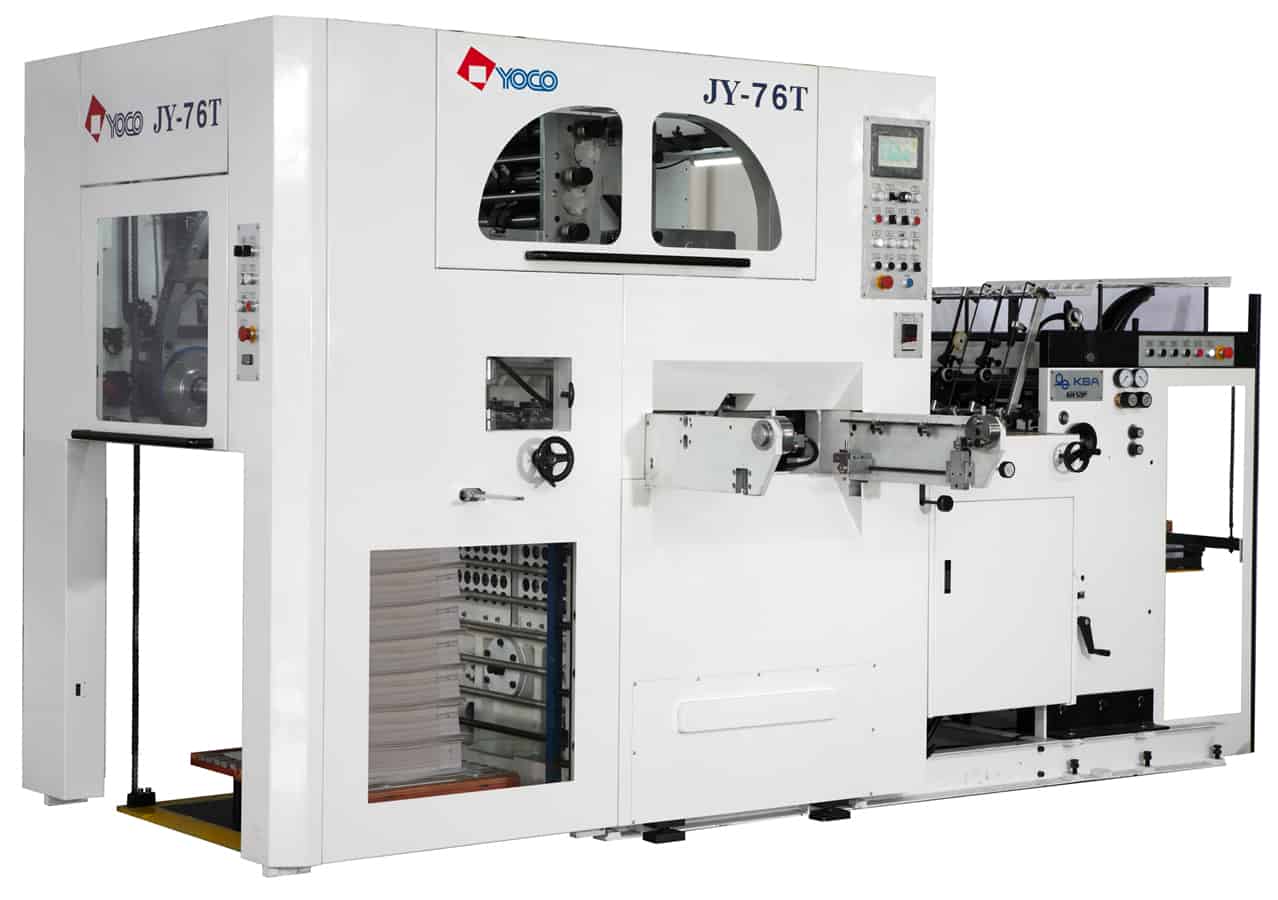

YOCO NIKKO JY-76T - B2 size
Technical specification:
- Maximum sheet size, mm: 760 × 600
- Minimum sheet size, mm: 310 × 360
- Maximum diecutting size, mm: 750 × 580
- Maximum stamping size, mm: 750 x 530
- Minimum gripper margin, mm: 10
- Inside chase, mm: 910 × 560 mm
- Sheet thickness, mm: Cardboard 0.2-2mm, Corrugated board E, B
- Heating zones: 10
- Maximum speed, sh/h: Diecutting spee - 7000, Stamping speed - 6000
German design feeder with non-stop feeding supplied by KBA -MMS
For B2 model there is 1 direction for the foil feeding – 3 units longitudinal.
For longitudinal foil feeding there are two different designs - horizontal or vertical format.

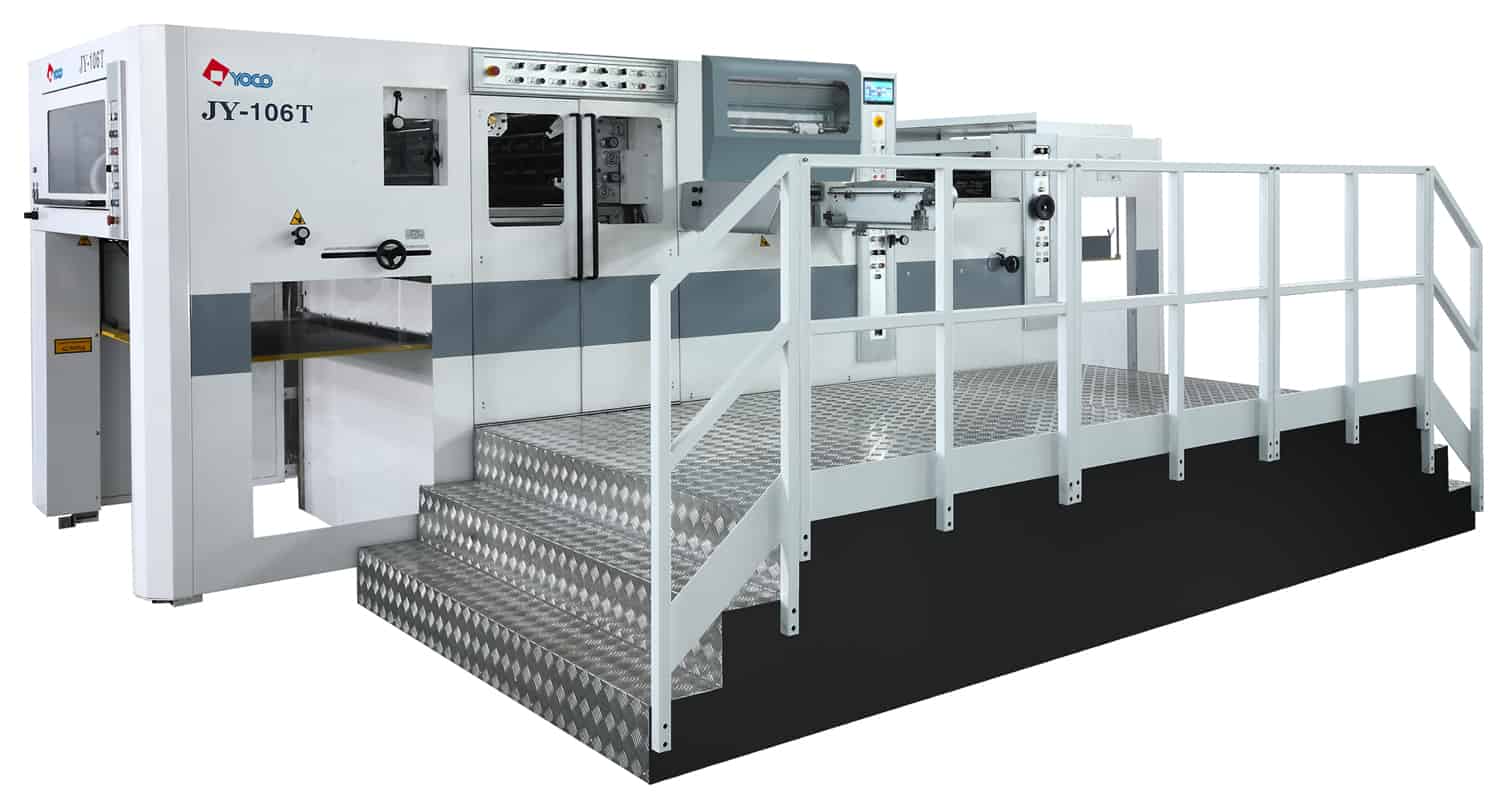

YOCO NIKKO JY-106T - B1 size
Technical specification:
- Maximum sheet size, mm: 1060 × 750
- Minimum sheet size, mm: 450 × 380
- Maximum diecutting size, mm: 1040 × 720
- Maximum stamping size, mm: 1040 × 730
- Minimum gripper margin, mm: 8
- Inside chase, mm: 1120 x 760 mm
- Sheet thickness, mm: 80 gsm up to 5mm B corrugated board
- Heating zones: 12
- Maximum speed, sh/h: Diecutting speed - 7500, Stamping speed - 6500
German design feeder with non-stop feeding supplied by KBA -MMS
For B1 model there are 2 directions for the foil feeding – 3 units longitudinal and 2 units transversal.
For longitudinal foil feeding there are two different designs - horizontal or vertical format.
Inquiry

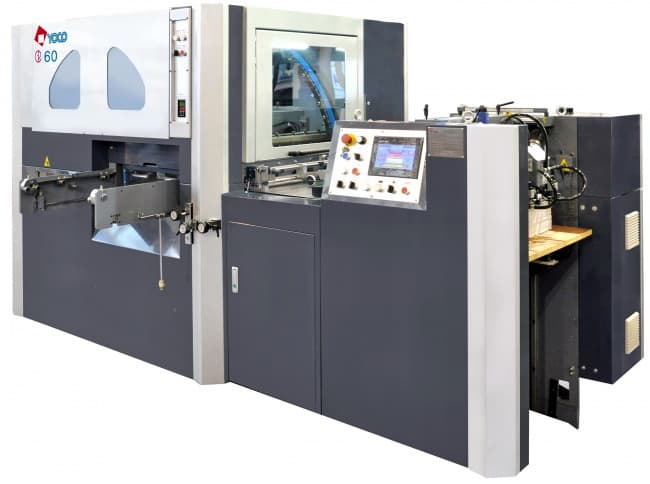

YOCO i60 Digital Diecutting Machine
Technical specification:
- Maximum sheet size, mm: 600 × 450
- Minimum sheet size, mm: 297 × 210
- Sheet thickness, mm: Cardboard 0.2 - 0.45 mm, 80 - 450 gsm
- Maximum speed, sh/h: 6000
Equipped with German design wise feeding system offered by KBA-MMS
2 units of longitudinal foil feeding system as standard
Automatic die locking system – no chase is required.
Inquiry

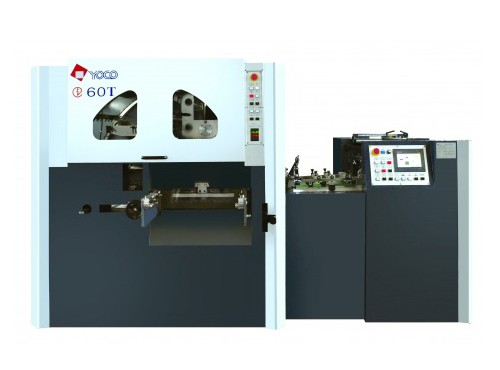

YOCO i60T Digital Diecutting and Foil Stamping Machine
Technical specification:
- Maximum sheet size, mm: 600 × 450
- Minimum sheet size, mm: 297 × 210
- Sheet thickness, mm: Cardboard 0.2 - 0.45 mm, 80 - 450 gsm
- Maximum speed, sh/h: 6000
Equipped with German design wise feeding system offered by KBA-MMS
2 units of longitudinal foil feeding system as standard
Automatic die locking system – no chase is required.
Inquiry
