SEMI-AUTOMATIC LOADING BOOK SEWING MACHINE FX-70

The FX-70 is an extremely simple-to-use, agile and functional sewing machine.

FEATURES:

• Semi-automatic loading - Semi-automatic signature side loading
• Ideal for short runs - Designed for short-to-medium runs of sewn books
• Ideally suited to oversized formats - Maximum signature size 520 (head to tail) x 360 (back to front) mm
• Fast and straightforward format changeover times - Simple straightforward machine set-up time in 5 minutes
• Mixed vacuum and pressure heading up system - Perfect head alignment of inserted signatures on the mobile saddle
• Signature locking system - To ensure stitches are perfectly centered on the spine of the signature

DETAILS:

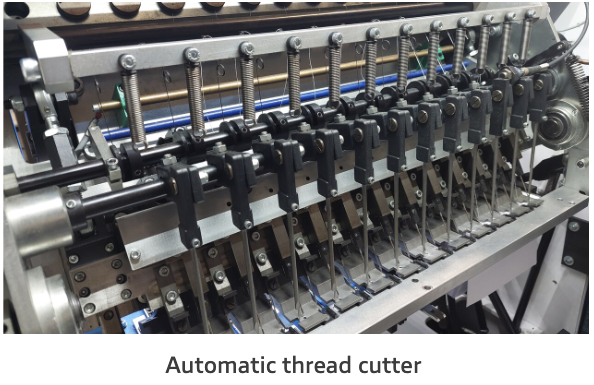

• Automatic thread cutter - The automatic fixed-knife thread-cutting unit allows the operator to easily separate the sewn book blocks on the delivery table

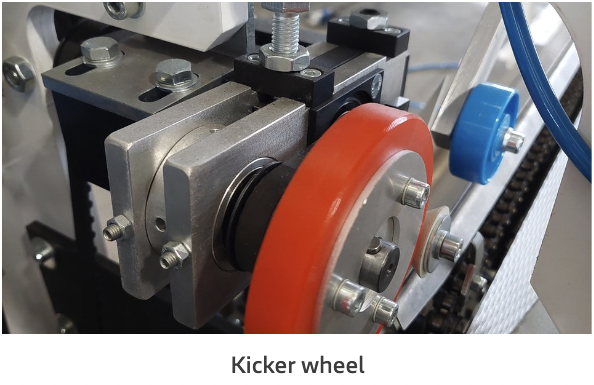

• Kicker wheel - An automatic system manages the speed according to signature weight and thickness.

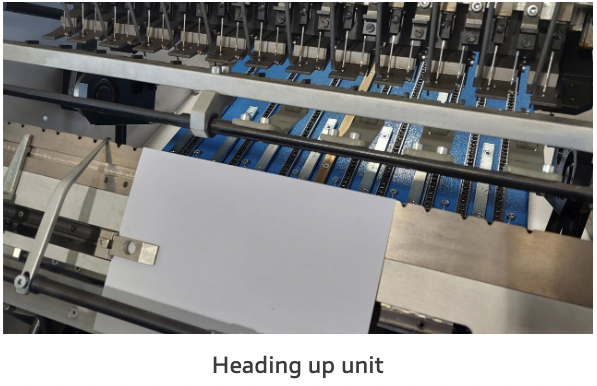

• Heading up unit - A vacuum and pressure system facilitates heading up on the inserted signature head side. When there are no inserted signatures, the vacuum is turned off and the heading-up unit works with the pressure system.

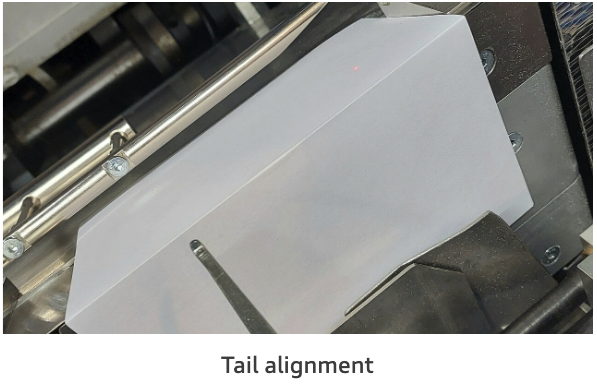

• Tail alignment - A mobile adjustable drive unit, installed inside the sewing saddle, facilitates signature alignment on the tail side.

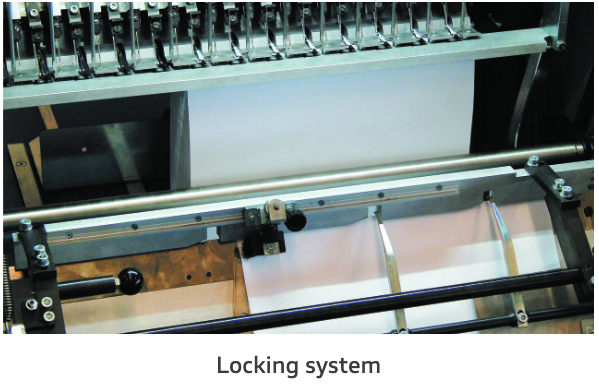

• Locking system - The mobile saddle is equipped with a signature locking system. This system holds the signatures in position at the top of the saddle and assures the exact centering of the stitches on the spine.

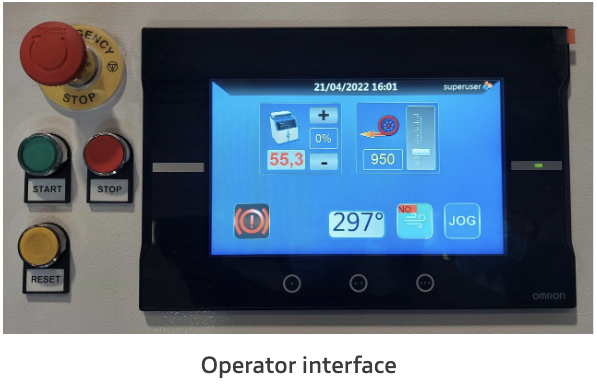

• Operator interface - A 10" touch screen allows the operator to manage the book production program and all sewing operating parameters.

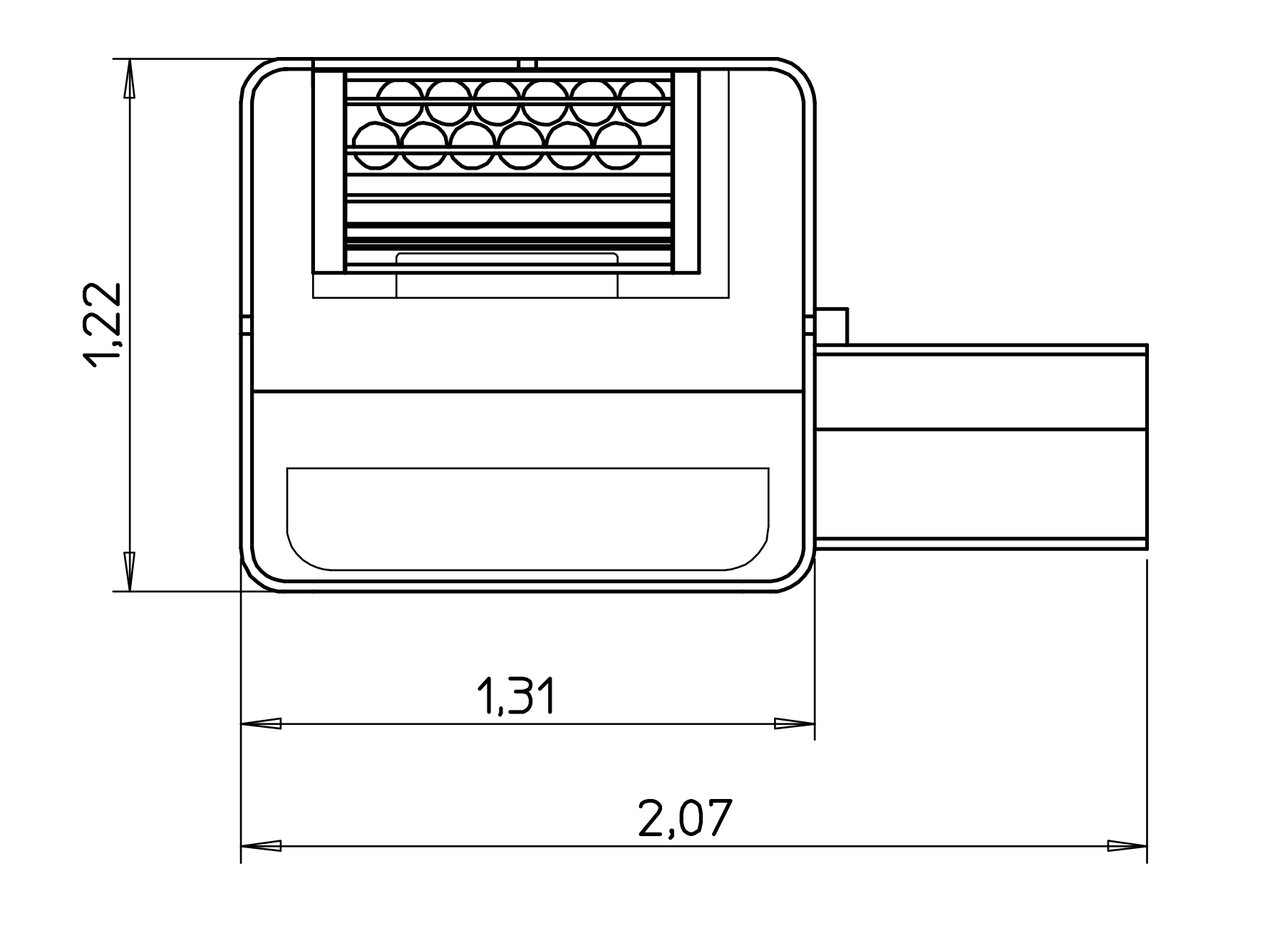

LAYOUT:
