LITHRONE G44 ADVANCE
The 44 inch Offset Printing Press
- Packaging Solution - Perfect complement for the packaging printer as it increases overall print capacity using a larger sheet.
- Production efficiency - Unique format size offers unmatched production efficiency. The Lithrone G44 advance is a strategic machine that revolutionizes production efficiency with wide maximum sheet size. The G44 advance is the perfect complement for the packaging printer as it increases overall print capacity using a larger sheet while maintaining the ease of operation similar to a B1-press.
- Connected Automation - Strengthened collaboration and optimization between processes as well as high-level automation with presets based on information from high-end systems. Connected Automation, Komori’s concept for creating a Smart Factory, develops labor and work saving solutions, and strengthens standardization and inspection mechanisms.
- Print Quality - The optimized dampening system, the dot quality sharpness, and stability are maintained while suitability for high speed/long-run printing is improved.
- World Class ROI.

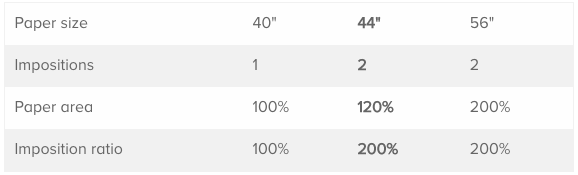

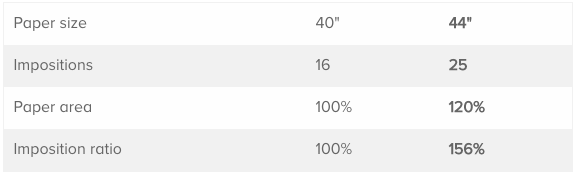

The Benefit by the Unique Format Size
High production efficiency for large-format package printing
High production efficiency for package printing
LITHRONE GX44 advance (44-inch Offset Printing Press) specifications
Model
GLX-444A
Number of colours
4
Max printing speed (sph)
15000
Max sheet size (mm)
840 x 1150 (820 x 1,130 option)
Min sheet size (mm)
460 x 620
Max printing area (mm)
820 x 1140 (810 x 1120 option)
Plate size (mm)
900 x 1150 (900 x 1130 option)
Blanket size (mm)
1050 x 1160 including aluminum bar
Feeder / Delivery pile height (mm)
1250
Length (mm)
11255
Width (mm)
3,910 (5,650 with blower cabinet)
Heigh (mm)
2,368 (2,850 with safety covers open)
Model
GLX-544A
Number of colours
5
Max printing speed (sph)
15000
Max sheet size (mm)
840 x 1150 (820 x 1,130 option)
Min sheet size (mm)
460 x 620
Max printing area (mm)
820 x 1140 (810 x 1120 option)
Plate size (mm)
900 x 1150 (900 x 1130 option)
Blanket size (mm)
1050 x 1160 including aluminum bar
Feeder / Delivery pile height (mm)
1250
Length (mm)
12590
Width (mm)
3,910 (5,650 with blower cabinet)
Heigh (mm)
2,368 (2,850 with safety covers open)
Model
GLX-644A
Number of colours
6
Max printing speed (sph)
15000
Max sheet size (mm)
840 x 1150 (820 x 1,130 option)
Min sheet size (mm)
460 x 620
Max printing area (mm)
820 x 1140 (810 x 1120 option)
Plate size (mm)
900 x 1150 (900 x 1130 option)
Blanket size (mm)
1050 x 1160 including aluminum bar
Feeder / Delivery pile height (mm)
1250
Length (mm)
13925
Width (mm)
3,910 (5,650 with blower cabinet)
Heigh (mm)
2,368 (2,850 with safety covers open)
Model
GLX-744A
Number of colours
7
Max printing speed (sph)
15000
Max sheet size (mm)
840 x 1150 (820 x 1,130 option)
Min sheet size (mm)
460 x 620
Max printing area (mm)
820 x 1140 (810 x 1120 option)
Plate size (mm)
900 x 1150 (900 x 1130 option)
Blanket size (mm)
1050 x 1160 including aluminum bar
Feeder / Delivery pile height (mm)
1250
Length (mm)
15260
Width (mm)
3,910 (5,650 with blower cabinet)
Heigh (mm)
2,368 (2,850 with safety covers open)
Model
GLX-844A
Number of colours
8
Max printing speed (sph)
15000
Max sheet size (mm)
840 x 1150 (820 x 1,130 option)
Min sheet size (mm)
460 x 620
Max printing area (mm)
820 x 1140 (810 x 1120 option)
Plate size (mm)
900 x 1150 (900 x 1130 option)
Blanket size (mm)
1050 x 1160 including aluminum bar
Feeder / Delivery pile height (mm)
1250
Length (mm)
16595
Width (mm)
3,910 (5,650 with blower cabinet)
Heigh (mm)
2,368 (2,850 with safety covers open)
