Punching, Creasing & Perforating Machine AirSpeed 450

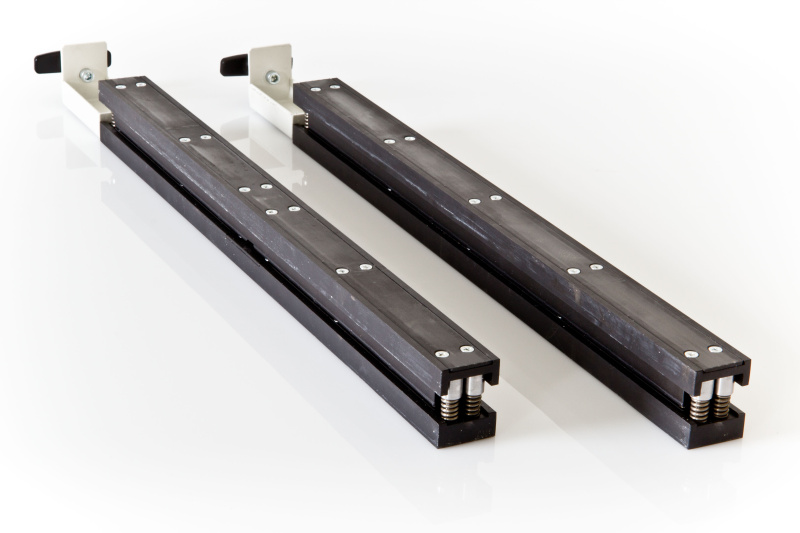

Both AirSpeed 450 and GPM 450 Speed use the same punching tools. These machines have a strong metal press built inside capable to punch through any sheet up to 400 gsm. Since 2014 we have launched several punching tools designed for wire binding and calendar making, the core of 'punching business'. However not only calendars are the end products of AirSpeed punching production. 'On-demand' development creates tools for surprising use. EuroPunch, Flat Lay Book Punch, etc. constantly increase versatility of both machines. Unleash your imaginagion and we'll make a tool just for you.

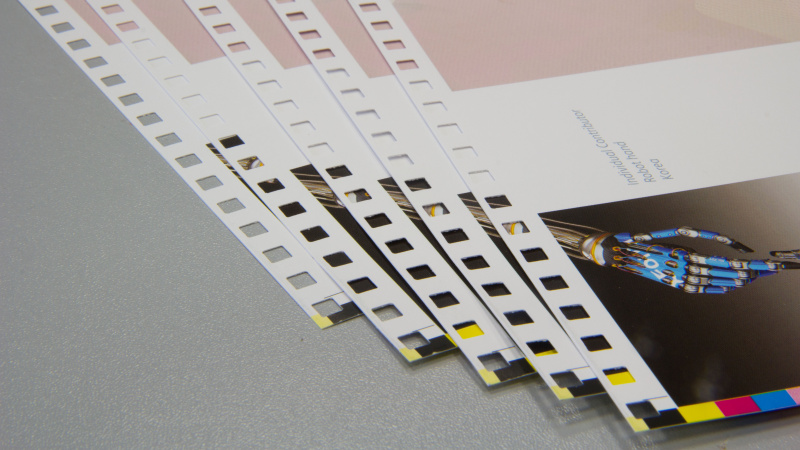

• optional wire punching tool

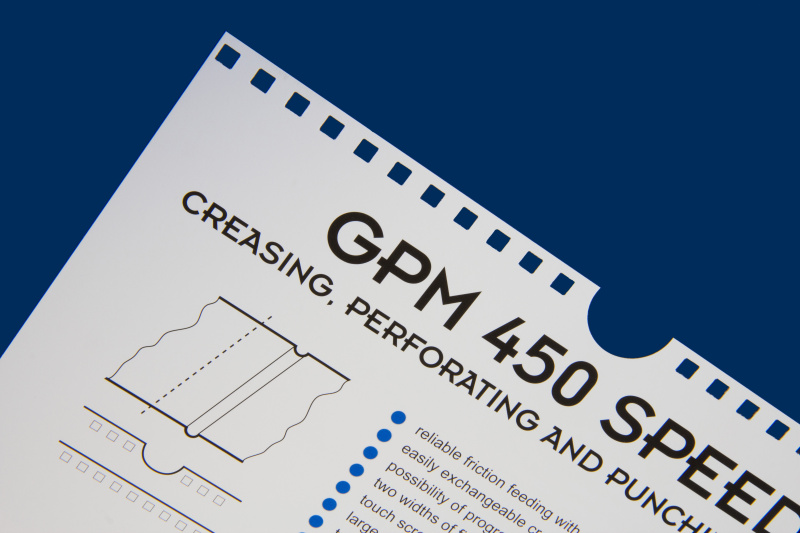

• optional calendar punching tool
• optional Euro Punch tool
• optional Sheet Turner w/ Mobile Table
• original AIR feeding with speed up to 3000 A4 sheets/A4
• large work table and working width suitable for A2 paper formats
• 7'' touch screen display for easy setting of distance and number of creases
• easily exchangeable creasing, perforating and punching tools
• rotary perforating and slitting tools
• kiss-cutting
• cross-perforation in 1 pass
• optional partial perforating and cutting knife
• possibility of programme storage
• two widths of fine creasing channels
• high-quality anvil perforation
• mobile table for easy manipulation
• batching

TECHNICAL SPECIFICATION

• WORKING WIDTH: 115 - 457 mm
• GRAMMAGE: 80 - 400 gsm (creasing, punching), 80 - 250 gsm (perforating)
• WIDTH OF CREASE: CITO 1,0 mm - paper grammage 80 - 200 gsm; iron channel 1,9 mm - paper grammage 200 - 400 gsm
• MIN./MAX. DISTANCE BETWEEN CREASES: 1/ 999 mm
• INPUT CAPACITY: 70 mm
• SPEED: 3.000 sheets A4/ h (1 crease per sheet); 4.300 sheets A4/ h (0 crease per sheet)
• MIN./MAX. NUMBER OF CREASES PER SHEET: 0/40
• MAX. NUMBER OF PERF. WHEELS: 13 (1 in standard equipment)
• DIMENSIONS: 1320 x 755 x 455 mm (h = 1225 mm - on table)
• PACKING SIZE: 1 pallet - 1200 x 800 x 720 mm (wooden box)
• WEIGHT: netto 140 kg, gross 189 kg (including mobile table)
• VOLTAGE / FREQUENCY: 230 V/ 50Hz, 110 V/ 60 Hz
• CONTENT OF PACKING: 2 x creasing tool, 1 x perforating tool, 1 x rotary perforating kit, 1 x cutting wheel, mobile table
• OPTIONAL DEVICES: Ultrasound sensor for double sheet detection; Sheet turner with mobile table

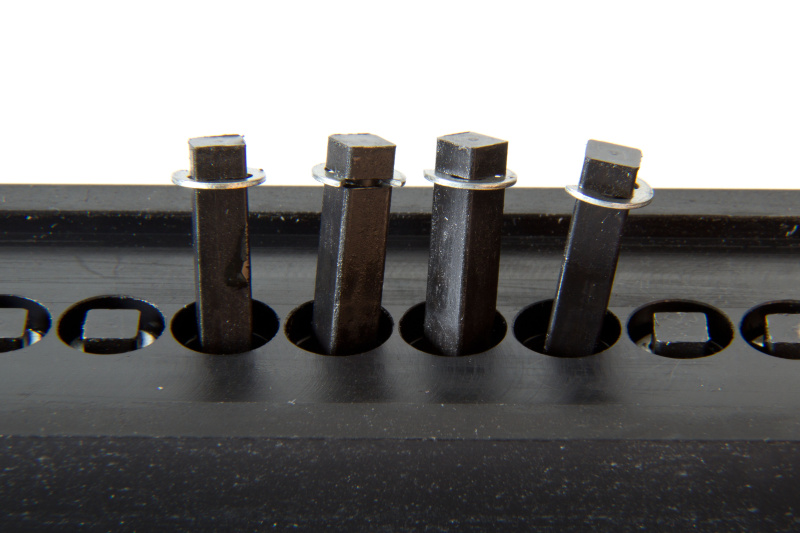

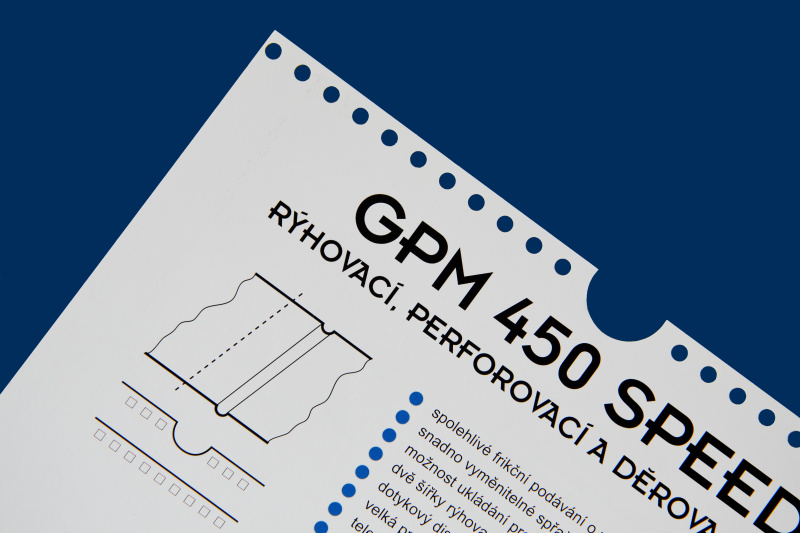

• OPTIONAL STRIKE TOOLS: Punching tool – square 5x5 mm, 2:1; Punching tool - square 6x6 mm, 2:1; Punching tool – square 4x4 mm, 3:1; Punching tool – square 4x4 mm, 3:1, calendar punch; Punching tool – round, dia 4 mm, 3:1; Punching tool – round, dia 4 mm, 3:1, calendar punch; Punching tool - oval 5x4 mm (plastic coil); Euro Punch tool; Flat Lay Photobook tool; Micro perforating tool; Partial perforating tool; Cutting tool
• OPTIONAL ROTARY TOOLS: Perforating wheel 9 TPI; Microperforating wheel 30 TPI; Cutting/kiss-cutting wheel
